Impérial Luxe O472-L (0472-L) lampes américaines

ORA, Oradyne, Gérard & Cie, AOR (SFRT); Clichy, Paris, Montrouge, Montreuil

  • Year
  • 1946/1947
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 233060

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120; 130-150; 220-240 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
  • Material
  • Bakelite case
  • from Radiomuseum.org
  • Model: Impérial Luxe O472-L [lampes américaines] - ORA, Oradyne, Gérard & Cie,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 500 x 325 x 275 mm / 19.7 x 12.8 x 10.8 inch
  • Net weight (2.2 lb = 1 kg)
  • 10.1 kg / 22 lb 3.9 oz (22.247 lb)

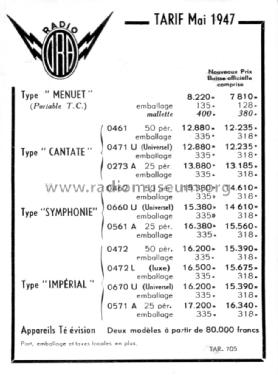

  • Price in first year of sale
  • 16,500.00 FRF
  • Mentioned in

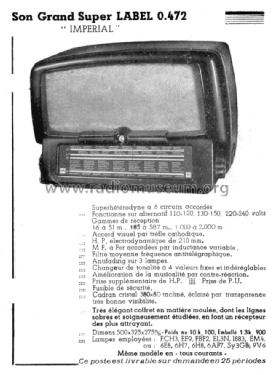

  • -- Original prospect or advert
  • Author
  • Model page created by Mark Hippenstiel. See "Data change" for further contributors.
