• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 100235

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and more than two Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 220; 250 Volt
  • Loudspeaker
  • Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21 cm = 8.3 inch
  • Power out
  • 4.4 W (unknown quality)
  • Material
  • Bakelite case
  • from Radiomuseum.org

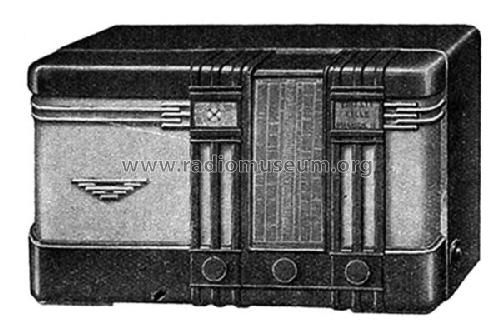

  • Model: LP69 Cinéma [bakélite] - ORA, Oradyne, Gérard & Cie,
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 565 x 350 x 245 mm / 22.2 x 13.8 x 9.6 inch
  • Notes
  • 7 gammes d'ondes : 4 bandes OC étalées de 19.54 à 20.20 m, de 24.80 à 25.60 m, de 30.30 à 31.74 m, de 48.80 à 50.50 m; et 3 gammes normales OC de 18 à 52 m, PO de 194 à 570, GO de 800 à 1935 m. Anti-fading. Sélectivité variable. Contre-réaction BF corrigée, réglage de tonalité progressif. Prise "Stéréora". Lampes cadran : cinéma 1 x 7 V / 0.42 A, cadran 2 x 6 V / 0.5 A, voyant 1 x 6.5 V / 0.3 A.

    Projecteur cinematographique pour lecture amplifiée des noms de stations.

    Coffret bakélite rehaussé barres chromées.

    Modèle spécial pour 25 périodes, supplément 25 Fr.
    Même modèle en tous courants, voir LPU79 Cinéma.

  • Net weight (2.2 lb = 1 kg)
  • 19.3 kg / 42 lb 8.2 oz (42.511 lb)
  • Price in first year of sale
  • 3,465.00 FRF
  • Circuit diagram reference
  • La Documentation du Revendeur - Radio
  • Mentioned in
  • -- Original prospect or advert (Postes Salon 1939)
  • Author
  • Model page created by Peter Hoddow. See "Data change" for further contributors.
