• Year
  • 1949 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 301282

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • AC/DC-set / 110; 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

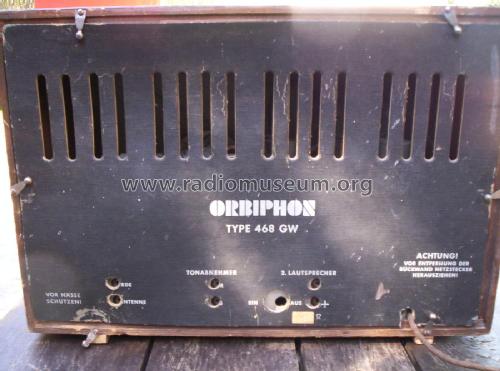

  • Model: 468GW - Orbiphon, W. Schmidt & Co.;
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 500 x 330 x 280 mm / 19.7 x 13 x 11 inch
  • Notes
  • Röhrenbestückung nicht sicher aber sehr wahrscheinlich.

    Siehe auch Orbiphon 468W für Wechselstrom-Anschluss.

  • Author
  • Model page created by Piotr Jachymczyk. See "Data change" for further contributors.
