C3-131 walnut

C3-131 ; Oriole brand (ID = 2259088) Radio C3-131 ; Oriole brand (ID = 2259089) Radio
C3-131 ; Oriole brand (ID = 2259090) Radio C3-131 ; Oriole brand (ID = 2259091) Radio

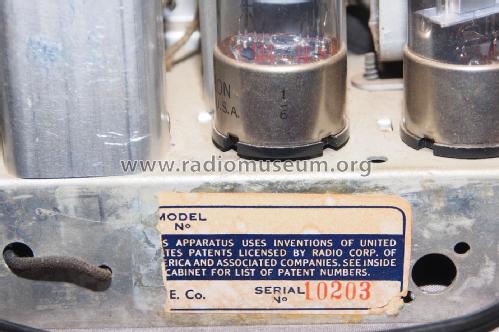

C3-131 ; Oriole brand (ID = 2259092) Radio
Use red slider bar for more.
C3-131 ; Oriole brand (ID = 2259088) Radio
Oriole brand: C3-131 [Radio] ID = 2259088 1392x1043
Select picture or schematic to display from thumbnails on the right and click for download.
For model C3-131 walnut, Oriole (brand) Continental Radio & Television Co.

Country:  United States of America (USA)
Manufacturer / Brand:  Oriole (brand) Continental Radio & Television Co.
Year: 1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: C3-131 [walnut] - Oriole brand Continental Radio
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 9.25 x 6.25 x 5 inch / 235 x 159 x 127 mm
Notes

Tunes full Broadcast Band Plus Police: 530 to 1730Kc.

Price in first year of sale 12.95 USD
Mentioned in Summer 1940.Supplement 56A To General Catalog 56 from Burstein-Applebee Co.

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
