Challenger PA35A

Challenger PA35A; Oriole brand (ID = 1668639) Ampl/Mixer Challenger PA35A; Oriole brand (ID = 1668638) Ampl/Mixer
Use red slider bar for more.
Challenger PA35A; Oriole brand (ID = 1668639) Ampl/Mixer
Oriole brand: Challenger PA35A [Ampl/Mixer] ID = 1668639 500x343
Select picture or schematic to display from thumbnails on the right and click for download.
For model Challenger PA35A, Oriole (brand) Continental Radio & Television Co.:

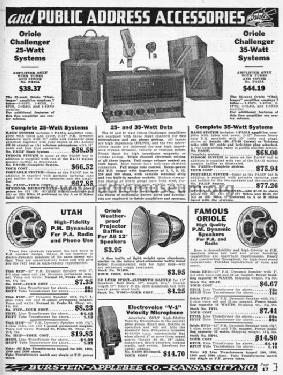

Catalog Burstein-Applebee Co.1940
Country:  United States of America (USA)
Manufacturer / Brand:  Oriole (brand) Continental Radio & Television Co.
Year: 1940 ? Category: Audio Amplifier or -mixer
Valves / Tubes 7: 6SF5 6SF5 6C8G 6F8G 5X4G 6L6G 6L6G
Main principle Audio-Amplification
Wave bands - without
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out 35 W (unknown quality)
from Model: Challenger PA35A - Oriole brand Continental Radio
Material Metal case
Shape Tablemodel, with any shape - general.
Price in first year of sale 44.19 USD
Mentioned in Summer 1940.Supplement 56A,To General Catalog 56 from Burstein-Applebee Co.

Model page created by João-Afonso Santos. See "Data change" for further contributors.
