R3118

R3118 ; Oriole brand (ID = 1666568) Radio R3118 ; Oriole brand (ID = 1666569) Radio
Use red slider bar for more.
R3118 ; Oriole brand (ID = 1666568) Radio
Oriole brand: R3118 [Radio] ID = 1666568 500x422
Select picture or schematic to display from thumbnails on the right and click for download.
For model R3118, Oriole (brand) Continental Radio & Television Co.:
Catalogo Burstein-Applebee Co.

Country:  United States of America (USA)
Manufacturer / Brand:  Oriole (brand) Continental Radio & Television Co.
Year: 1940 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out
from Radiomuseum.org Model: R3118 - Oriole brand Continental Radio
Material Leather / canvas / plastic - over other material
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 10 x 7 x 6.5 inch / 254 x 178 x 165 mm
Notes

535 to 1740 kc

Net weight (2.2 lb = 1 kg) 9.5 lb (9 lb 8 oz) / 4.313 kg
Price in first year of sale 14.95 USD

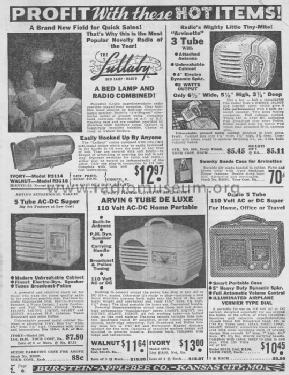

Mentioned in -- Original prospect or advert (Catalog Burstein Applebee 1940)

Model page created by João-Afonso Santos. See "Data change" for further contributors.



All listed radios etc. from Oriole (brand) Continental Radio & Television Co.
Here you find 118 models, 63 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
