Car Cassette Tape Player with MW/SW CA-AS

Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1479149) Car Radio Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1479150) Car Radio
Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1480807) Car Radio Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1480809) Car Radio
Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1480827) Car Radio Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1480830) Car Radio

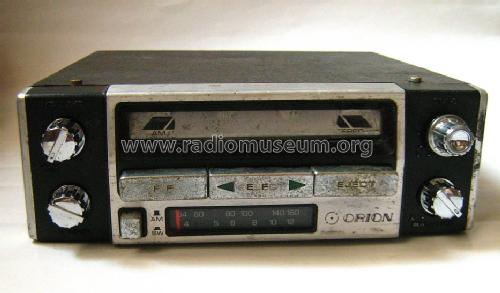

Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1480831) Car Radio Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1480833) Car Radio
Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1480834) Car Radio Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1480835) Car Radio
Use red slider bar for more.
Car Cassette Tape Player with MW/SW CA-AS; Orion Electric Co., (ID = 1479149) Car Radio
Orion Electric Co.,: Car Cassette Tape Player with MW/SW CA-AS [Car Radio] ID = 1479149 840x577
Select picture or schematic to display from thumbnails on the right and click for download.
For model Car Cassette Tape Player with MW/SW CA-AS, Orion Electric Co., Ltd.; Echizen-shi (Fukui):
I will upload additional pictures later.

Country:  Japan
Manufacturer / Brand:  Orion Electric Co., Ltd.; Echizen-shi (Fukui)
Year: 1972 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 4: 2SA102 2SA103 2SC829 2SC829 µPC566 µPC566
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Car Cassette Tape Player with MW/SW CA-AS - Orion Electric Co., Ltd.;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 190 x 60 x 190 mm / 7.5 x 2.4 x 7.5 inch

Model page created by Daniel Rosha. See "Data change" for further contributors.
