Ellens FM / AM 9 Transistor (Japan JT-602)

Ellens FM / AM 9 Transistor ; Orion Electric Co., (ID = 898243) Radio
Ellens FM / AM 9 Transistor ; Orion Electric Co., (ID = 230201) Radio Ellens FM / AM 9 Transistor ; Orion Electric Co., (ID = 745882) Radio
Ellens FM / AM 9 Transistor ; Orion Electric Co., (ID = 745883) Radio Ellens FM / AM 9 Transistor ; Orion Electric Co., (ID = 745884) Radio
Ellens FM / AM 9 Transistor ; Orion Electric Co., (ID = 963859) Radio
Use red slider bar for more.
Ellens FM / AM 9 Transistor ; Orion Electric Co., (ID = 230201) Radio
Orion Electric Co.,: Ellens FM / AM 9 Transistor [Radio] ID = 230201 382x162
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ellens FM / AM 9 Transistor (Japan JT-602), Orion Electric Co., Ltd.; Echizen-shi (Fukui):
Dimensions are in mm not inches

Country:  Japan
Manufacturer / Brand:  Orion Electric Co., Ltd.; Echizen-shi (Fukui)
Year: 1964 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Ellens FM / AM 9 Transistor - Orion Electric Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 85 x 45 mm / 5.5 x 3.3 x 1.8 inch
Notes

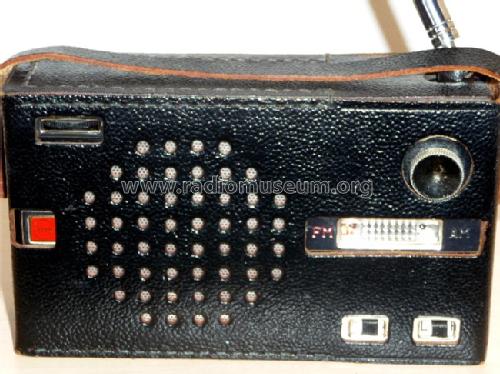

Ellens 9 transistor AM/FM supplied with screw off rod antenna and leather case

Made in Japan JT-602.

Net weight (2.2 lb = 1 kg) 0.430 kg / 0 lb 15.2 oz (0.947 lb)
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by De Paep Kamiel. See "Data change" for further contributors.
