• Country
• Japan

• Manufacturer / Brand
• Orion Electric Co., Ltd.; Echizen-shi (Fukui)

• Year
• 1970 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149725

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors
• 2SA348 2SA348 2SA368 2SA368 2SA368 2SB135 2SB135 2SB136 2SB136

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.7 cm = 2.6 inch

• Power out
• 0.25 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

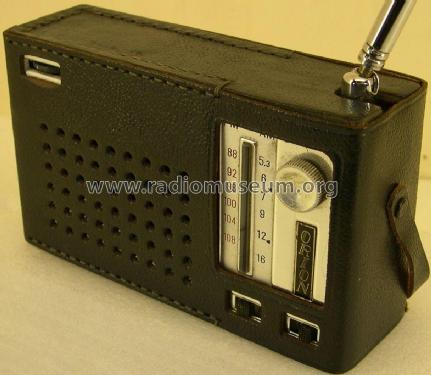

• Model: FM/AM 9 Transistor Radio - Orion Electric Co., Ltd.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 142 x 90 x 42 mm / 5.6 x 3.5 x 1.7 inch

• Notes

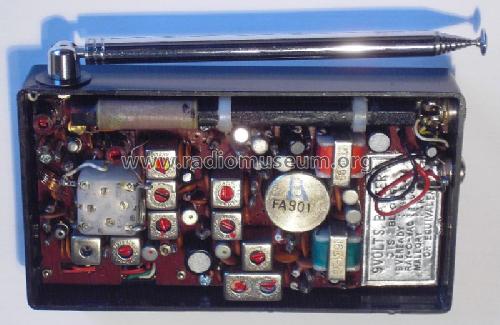

• 2 Übertrager in der Endstufe. 3 Dioden MD60. DrehKo: MITSUMIELEC Co. LTD. Japan, Elkos: ECHO Japan, Filter: RCL. Ferritantenne: 110 mm lang, D= 8 mm mit 2 Abflachungen, Teleskopantenen: 72,5 cm, 8 Glieder. Platinen und Lautsprecherbezeichnung: FA901. Ausstattung: Ohrhöreranschluss 2,5 mm Klinke, Schalter Ton High / Low. Hersteller (Rückwandprägung: Orion Electric Co. LTD Japan. Ein Vorbesitzer hat éinen externen Anschluss für 9 V eingebaut (Original 9 Volt Blockbatterie).

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Author
• Model page created by Alfred Przybilla. See "Data change" for further contributors.
