AM/FM (Japan JT-602)

AM/FM ; Orion Electric Co., (ID = 1448748) Radio AM/FM ; Orion Electric Co., (ID = 1448747) Radio
AM/FM ; Orion Electric Co., (ID = 1448749) Radio AM/FM ; Orion Electric Co., (ID = 1448750) Radio
Use red slider bar for more.

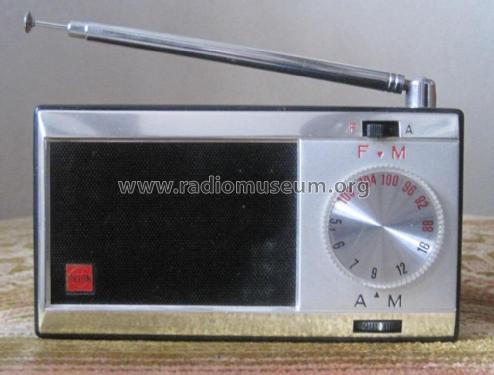

AM/FM ; Orion Electric Co., (ID = 1448748) Radio
Orion Electric Co.,: AM/FM [Radio] ID = 1448748 900x945
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM (Japan JT-602), Orion Electric Co., Ltd.; Echizen-shi (Fukui)

Country:  Japan
Manufacturer / Brand:  Orion Electric Co., Ltd.; Echizen-shi (Fukui)
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Batteries / addl. power jack / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AM/FM - Orion Electric Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 140 x 90 x 50 mm / 5.5 x 3.5 x 2 inch
Notes

Made in Japan JT-602

Model page created by Holger Struthoff. See "Data change" for further contributors.



All listed radios etc. from Orion Electric Co., Ltd.; Echizen-shi (Fukui)
Here you find 134 models, 124 with images and 17 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
