Six Transistor (Japan JT-602)

Six Transistor ; Orion Electric Co., (ID = 895631) Radio
Six Transistor ; Orion Electric Co., (ID = 640639) Radio Six Transistor ; Orion Electric Co., (ID = 640641) Radio
Six Transistor ; Orion Electric Co., (ID = 640642) Radio
Use red slider bar for more.

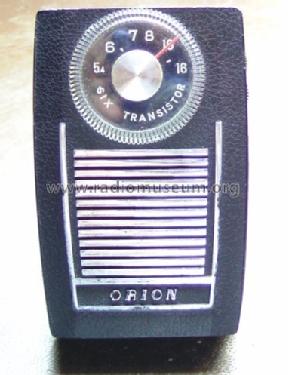

Six Transistor ; Orion Electric Co., (ID = 640639) Radio
Orion Electric Co.,: Six Transistor [Radio] ID = 640639 383x497
Select picture or schematic to display from thumbnails on the right and click for download.
For model Six Transistor (Japan JT-602), Orion Electric Co., Ltd.; Echizen-shi (Fukui)

Country:  Japan
Manufacturer / Brand:  Orion Electric Co., Ltd.; Echizen-shi (Fukui)
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA45 2SA466 2SA466 2SB422 2SB423 2SB423
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out
from Radiomuseum.org Model: Six Transistor - Orion Electric Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 67 x 100 x 0 mm / 2.6 x 3.9 x 0 inch
Notes

Orion 6 transistor pocket radio.

Made in Japan JT-602

Model page created by Ottmar Lauth. See "Data change" for further contributors.
