• Year
  • 1955 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 228249

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Line (AC, UC or DC not known) / 115 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Wooden case
  • from Radiomuseum.org

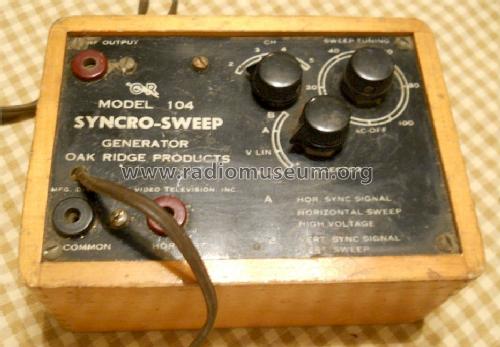

  • Model: Synchro-Sweep Generator 104 - OR - Oak Ridge Products -
  • Shape
  • Tablemodel, with any shape - general.
  • Notes
  • H & V TV signals.

  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
