• Year
  • 1954
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 71389

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 472 kHz
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Line / Batteries (any type) / 130-230/90/1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
  • from Radiomuseum.org

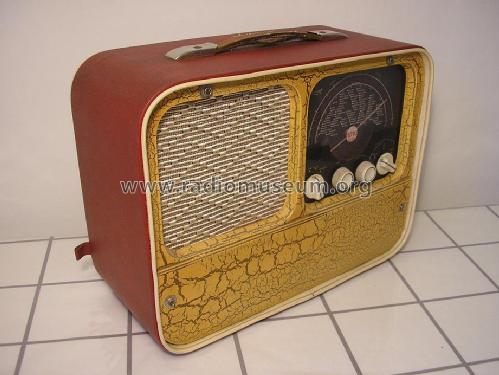

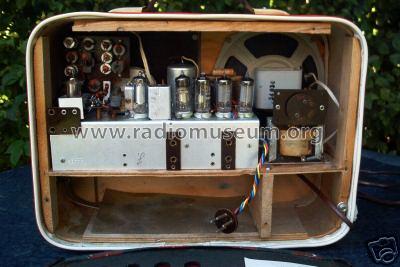

  • Model: Mascot 541C2 - Ostfold Radio A/S;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 360 x 270 x 160 mm / 14.2 x 10.6 x 6.3 inch
  • Price in first year of sale
  • 427.00 NKr.
  • Author
  • Model page created by Ernst Rykkje. See "Data change" for further contributors.
