Mascot 612

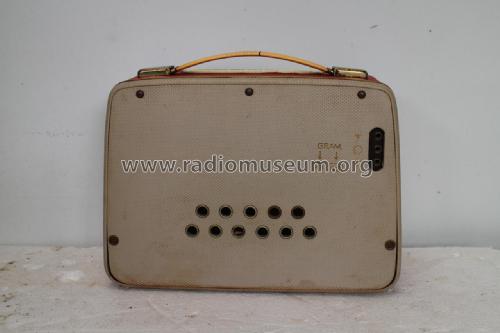

Mascot 612; Ostfold Radio A/S; (ID = 1785359) Radio Mascot 612; Ostfold Radio A/S; (ID = 1270293) Radio
Mascot 612; Ostfold Radio A/S; (ID = 1785360) Radio Mascot 612; Ostfold Radio A/S; (ID = 1785361) Radio
Use red slider bar for more.
Mascot 612; Ostfold Radio A/S; (ID = 1785359) Radio
Ostfold Radio A/S;: Mascot 612 [Radio] ID = 1785359 1280x853
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mascot 612, Ostfold Radio A/S; Frederikstad

Country:  Norway
Manufacturer / Brand:  Ostfold Radio A/S; Frederikstad
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common); ZF/IF 472 kHz
Wave bands Broadcast, Long Wave and more than two Short Wave bands.
Details
Power type and voltage Dry Batteries / 6x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Mascot 612 - Ostfold Radio A/S;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 230 x 110 mm / 12.2 x 9.1 x 4.3 inch
Price in first year of sale 427.00 NOK
Source of data -- Original-techn. papers.

Model page created by Ernst Rykkje. See "Data change" for further contributors.
