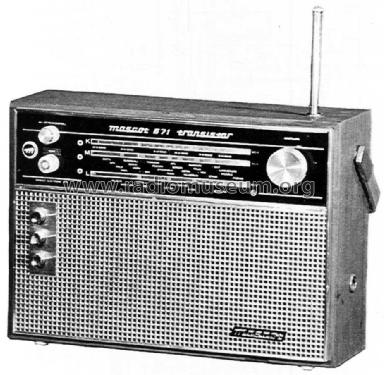

Mascot Transistar 671

Mascot Transistar 671; Ostfold Radio A/S; (ID = 1270484) Radio
Use red slider bar for more.
Mascot Transistar 671; Ostfold Radio A/S; (ID = 1270484) Radio
Ostfold Radio A/S;: Mascot Transistar 671 [Radio] ID = 1270484 930x907
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mascot Transistar 671, Ostfold Radio A/S; Frederikstad:
From my data blade from The Norwegian Radio History Society

Country:  Norway
Manufacturer / Brand:  Ostfold Radio A/S; Frederikstad
Year: 1967 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Batteries / addl. power jack / 6x 1,5 / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out
from Radiomuseum.org Model: Mascot Transistar 671 - Ostfold Radio A/S;
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 275 x 195 x 80 mm / 10.8 x 7.7 x 3.1 inch
Price in first year of sale 560.00 NOK

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Ostfold Radio A/S; Frederikstad
Here you find 38 models, 26 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
