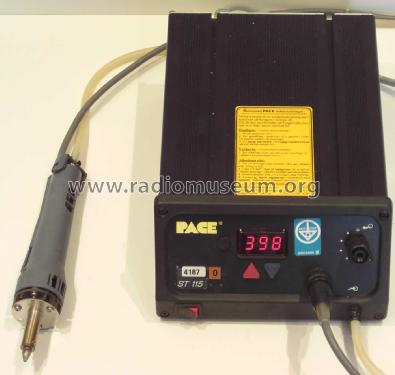

Digital Desoldering Station ST 115

Digital Desoldering Station ST 115; Pace Worldwide, Vass (ID = 2343863) Equipment
Use red slider bar for more.
Digital Desoldering Station ST 115; Pace Worldwide, Vass (ID = 2343863) Equipment
Pace Worldwide, Vass: Digital Desoldering Station ST 115 [Equipment] ID = 2343863 1400x1326
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Desoldering Station ST 115, Pace Worldwide, Vass, NC, USA

Country:  United States of America (USA)
Manufacturer / Brand:  Pace Worldwide, Vass, NC, USA
Year: 2010 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 230 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital Desoldering Station ST 115 - Pace Worldwide, Vass, NC, USA
Material Various materials
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 180 x 88 x 254 mm / 7.1 x 3.5 x 10 inch
Notes

Tip Temperature Range 204 - 482  Celsius,  ( 400 - 900  Fahrenheit ).

Temperature Stability  1,1  Celsius ( 2  Fahrenheit )

Front Panel Vacuum and Presure Ports.

Net weight (2.2 lb = 1 kg) 3.3 kg / 7 lb 4.3 oz (7.269 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Ottmar Rollmann. See "Data change" for further contributors.
