531P

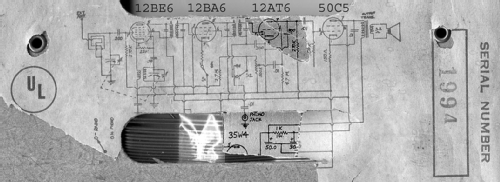

531P; Pacific Vogue Radio (ID = 1888022) Radio

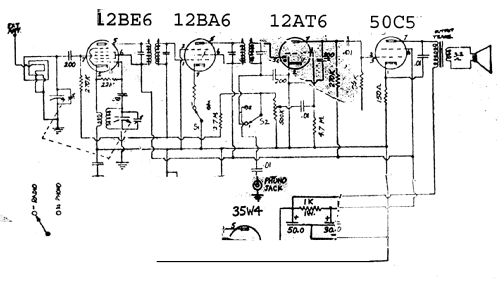

531P; Pacific Vogue Radio (ID = 1888057) Radio
531P; Pacific Vogue Radio (ID = 1859704) Radio 531P; Pacific Vogue Radio (ID = 1859705) Radio
531P; Pacific Vogue Radio (ID = 1859706) Radio 531P; Pacific Vogue Radio (ID = 1859707) Radio
531P; Pacific Vogue Radio (ID = 1859703) Radio
Use red slider bar for more.
531P; Pacific Vogue Radio (ID = 1859704) Radio
Pacific Vogue Radio: 531P [Radio] ID = 1859704 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model 531P, Pacific Vogue Radio & Television Mfg. Co., Los Angeles

Country:  United States of America (USA)
Manufacturer / Brand:  Pacific Vogue Radio & Television Mfg. Co., Los Angeles
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AT6 50C5 35W4
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 531P - Pacific Vogue Radio &
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 275 x 250 x 165 mm / 10.8 x 9.8 x 6.5 inch

Model page created by Donald Kennedy. See "Data change" for further contributors.



All listed radios etc. from Pacific Vogue Radio & Television Mfg. Co., Los Angeles
Here you find 1 models, 1 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
