For model 11RP7S Ch= 11HF1S, Packard Bell Co.; Los Angeles (CA):
Sams Photofact Folders

Country:  United States of America (USA)
Manufacturer / Brand:  Packard Bell Co.; Los Angeles (CA)
Year: 1959 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 11: 6AU6 12AT7 6EA8 6BE6 6AU6 6AL5 6AU6 7025 or 12AX7 6AQ5A 6AQ5A 6X4
Main principle Superhet with RF-stage; ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Changer (Record changer)
Power type and voltage Alternating Current supply (AC) / 110 - 120 Volt
Loudspeaker 3 Loudspeakers
Power out
from Radiomuseum.org Model: 11RP7S Ch= 11HF1S - Packard Bell Co.; Los Angeles
Material Wooden case
Shape Console with any shape - in general

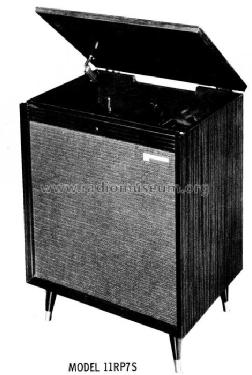

Notes The Packard-Bell Model 11RP7S is an AC operated 11 Tube FM-AM Receiver wit 4 Speed Automatic Record Changer.
Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 10-59, Set 459, Folder 11)

Model page created by Egon Penker. See "Data change" for further contributors.
