5-C De Luxe

5-C De Luxe ; Packard Bell Co.; (ID = 1661039) Radio 5-C De Luxe ; Packard Bell Co.; (ID = 1661040) Radio
Use red slider bar for more.
5-C De Luxe ; Packard Bell Co.; (ID = 1661039) Radio
Packard Bell Co.;: 5-C De Luxe [Radio] ID = 1661039 933x637
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5-C De Luxe, Packard Bell Co.; Los Angeles (CA):

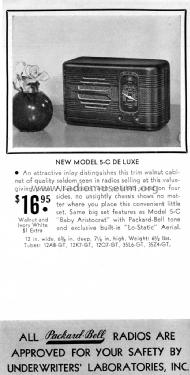

Scanned from the Packard-Bell Flyer for 1939.

Country:  United States of America (USA)
Manufacturer / Brand:  Packard Bell Co.; Los Angeles (CA)
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12A8GT 12K7GT 12Q7GT 35L6GT 35Z4GT
Main principle Super-Heterodyne (Super in general); 2 AF stage(s)
Details
Power type and voltage AC/DC-set
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 5-C De Luxe - Packard Bell Co.; Los Angeles
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 12 x 7.125 x 6.375 inch / 305 x 181 x 162 mm
Net weight (2.2 lb = 1 kg) 6.5 lb (6 lb 8 oz) / 2.951 kg
Price in first year of sale 16.95 $
Literature/Schematics (3) The Packard-Bell Flyer for 1939 .

Model page created by Ernst Erb. See "Data change" for further contributors.
