5R1 ; Packard Bell Co.; (ID = 804241) Radio
Packard Bell Co.;: 5R1 [Radio] ID = 804241 509x363
Select picture or schematic to display from thumbnails on the right and click for download.
For model 5R1, Packard Bell Co.; Los Angeles (CA):

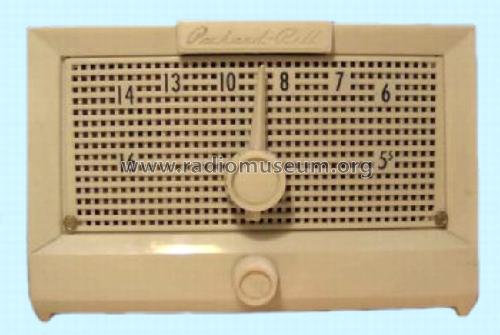

Brown model. My own collection.

Country:  United States of America (USA)
Manufacturer / Brand:  Packard Bell Co.; Los Angeles (CA)
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: 5R1 - Packard Bell Co.; Los Angeles
Material Bakelite case
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Notes The Packard Bell model 5R1 was available in different colors. Often collectors and even manufacturers use the term plastics instead of Bakelite when early plastic, a thermosetting phenol formaldehyde resin, formed from an elimination reaction of phenol with formaldehyde, usually with a wood flour filler was used. For the model 5R1 a guest (Brian Kays) told us that the cabinet smells like formaldehyde when he rubs it. Therefore we have selected Bakelite as material.
Circuit diagram reference Beitman Radio Diagrams Vol. 17, 1957

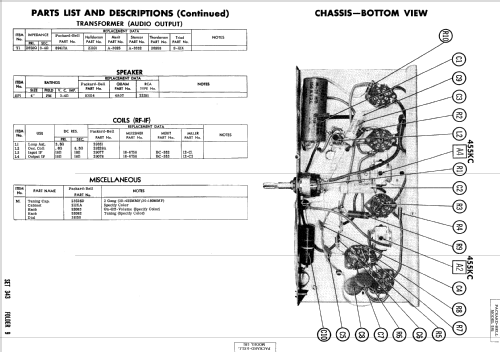

Literature/Schematics (1) Photofact Folder, Howard W. SAMS (Date 1-57, Set 343, Folder 9)

Model page created by Egon Penker. See "Data change" for further contributors.
