JY-R28

JY-R28; Packard Bell Co.; (ID = 1432211) Radio JY-R28; Packard Bell Co.; (ID = 1432209) Radio
JY-R28; Packard Bell Co.; (ID = 1432210) Radio JY-R28; Packard Bell Co.; (ID = 1432212) Radio
Use red slider bar for more.

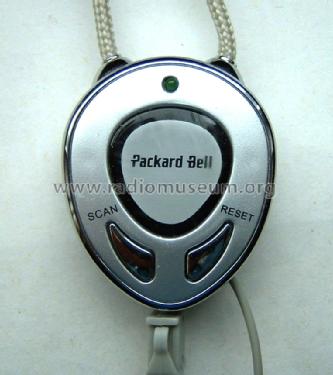

JY-R28; Packard Bell Co.; (ID = 1432211) Radio
Packard Bell Co.;: JY-R28 [Radio] ID = 1432211 764x859
Select picture or schematic to display from thumbnails on the right and click for download.
For model JY-R28, Packard Bell Co.; Los Angeles (CA)

Country:  United States of America (USA)
Manufacturer / Brand:  Packard Bell Co.; Los Angeles (CA)
Year: 1998 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 70 kHz
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 3 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: JY-R28 - Packard Bell Co.; Los Angeles
Material Plastics (no bakelite or catalin)
Shape Design Radio or Novelty / Gadget - fancy or unusual shape.
Dimensions (WHD) 32 x 39 x 14 mm / 1.3 x 1.5 x 0.6 inch
Notes

This is an egg-shaped scanradio, using a chinese version of the Philips TDA7088T SMD IC.There are in total 13 SMD capacitors, and 13 SMD resistors, one electrolytic C (100µF/6.3V), one LED and one SMD diode. PowerSupply  is a 3V litium button cel CR 2032.

Model page created by Georges Van Campenhout. See "Data change" for further contributors.
