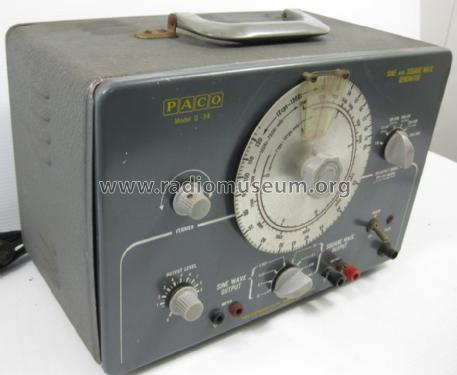

Sine/Square - Generator G34

Sine/Square - Generator G34; PACO Electronics Co. (ID = 459411) Equipment Sine/Square - Generator G34; PACO Electronics Co. (ID = 459414) Equipment
Sine/Square - Generator G34; PACO Electronics Co. (ID = 459412) Equipment Sine/Square - Generator G34; PACO Electronics Co. (ID = 1567097) Equipment
Sine/Square - Generator G34; PACO Electronics Co. (ID = 1567098) Equipment Sine/Square - Generator G34; PACO Electronics Co. (ID = 1567099) Equipment
Use red slider bar for more.
Sine/Square - Generator G34; PACO Electronics Co. (ID = 459411) Equipment
PACO Electronics Co.: Sine/Square - Generator G34 [Equipment] ID = 459411 900x629
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sine/Square - Generator G34, PACO Electronics Co., Inc.; Glendale, NY

Country:  United States of America (USA)
Manufacturer / Brand:  PACO Electronics Co., Inc.; Glendale, NY
Year: 1955 ?? Category: Service- or Lab Equipment
Valves / Tubes 4: 6BK7 6U8 6BQ7 6BL7
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Sine/Square - Generator G34 - PACO Electronics Co., Inc.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 330 x 230 x 190 mm / 13 x 9.1 x 7.5 inch
Notes Sine/Square Wave Generator, 6 Frequ. Ranges:7-12/12-120/120-1200/1200-12k/12k-120k/120k-750kHz.
Source of data - - Data from my own collection

Model page created by Wolfgang Dieter. See "Data change" for further contributors.



All listed radios etc. from PACO Electronics Co., Inc.; Glendale, NY
Here you find 18 models, 18 with images and 9 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
