Sweep Generator G32

Sweep Generator G32; PACO Electronics Co. (ID = 118782) Equipment

Sweep Generator G32; PACO Electronics Co. (ID = 118783) Equipment

Sweep Generator G32; PACO Electronics Co. (ID = 118781) Equipment
Sweep Generator G32; PACO Electronics Co. (ID = 117726) Equipment Sweep Generator G32; PACO Electronics Co. (ID = 117727) Equipment
Sweep Generator G32; PACO Electronics Co. (ID = 117728) Equipment Sweep Generator G32; PACO Electronics Co. (ID = 117729) Equipment
Sweep Generator G32; PACO Electronics Co. (ID = 117730) Equipment Sweep Generator G32; PACO Electronics Co. (ID = 117731) Equipment
Use red slider bar for more.

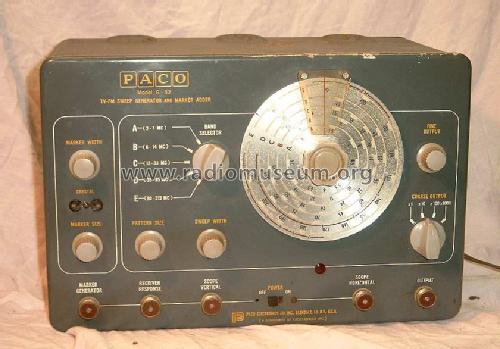

Sweep Generator G32; PACO Electronics Co. (ID = 117726) Equipment
PACO Electronics Co.: Sweep Generator G32 [Equipment] ID = 117726 840x587
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sweep Generator G32, PACO Electronics Co., Inc.; Glendale, NY

Country:  United States of America (USA)
Manufacturer / Brand:  PACO Electronics Co., Inc.; Glendale, NY
Year: 1955–1960 ?? Category: Service- or Lab Equipment
Valves / Tubes 7: 12AX7 6CB6 12B4A 12AX7 6BY8 6BQ7A 6X4
Details
Power type and voltage Alternating Current supply (AC) / 117 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: Sweep Generator G32 - PACO Electronics Co., Inc.;
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 13 x 10.5 x 7 inch / 330 x 267 x 178 mm
Notes TV-FM sweep generator 5 Freq. ranges: 3-7 Mc/ 6-14 Mc/ 13-33 Mc/ 35-85 Mc/ 80-213 Mc/
Source of data -- Original-techn. papers.

Model page created by Hugo Sneyers. See "Data change" for further contributors.
