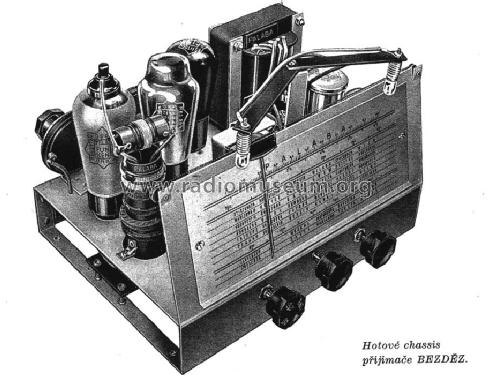

Bezdez - kit
Palaba, Pala, Akciova Spolecnost
- Country
- Czechoslovakia
- Manufacturer / Brand
- Palaba, Pala, Akciova Spolecnost
- Year
- 1935 ?
- Category
- Kit (Parts plus instruction) or building instructions only
- Radiomuseum.org ID
- 231393
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 3
- Main principle
- TRF with regeneration; 2 AF stage(s)
- Tuned circuits
- 1 AM circuit(s)
- Power type and voltage
- Alternating Current supply (AC) / 120/220 Volt
- from Radiomuseum.org
- Model: Bezdez - kit - Palaba, Pala, Akciova
- Notes
-
Kit for amateurs: parts, Schematics and Instructions without Case and Loudspeaker
Alternative tubes: Philips E446 E443H 506, Triotron S435N P435 G470, Tungsram HP4101
PP4101 PV4100
- Literature/Schematics (1)
- - - Manufacturers Literature ("Od krystalu k superhetu s ferrocartem" Orbis Praha 12, 1935)
- Author
- Model page created by Josef Smitka. See "Data change" for further contributors.
