Pallaphon Duplex

Pallaphon Duplex ; Palace Rádió, (ID = 987544) Crystal Pallaphon Duplex ; Palace Rádió, (ID = 987545) Crystal
Pallaphon Duplex ; Palace Rádió, (ID = 987546) Crystal Pallaphon Duplex ; Palace Rádió, (ID = 987547) Crystal
Pallaphon Duplex ; Palace Rádió, (ID = 987548) Crystal Pallaphon Duplex ; Palace Rádió, (ID = 1050624) Crystal
Pallaphon Duplex ; Palace Rádió, (ID = 1050625) Crystal Pallaphon Duplex ; Palace Rádió, (ID = 1214046) Crystal
Pallaphon Duplex ; Palace Rádió, (ID = 1529417) Crystal
Use red slider bar for more.

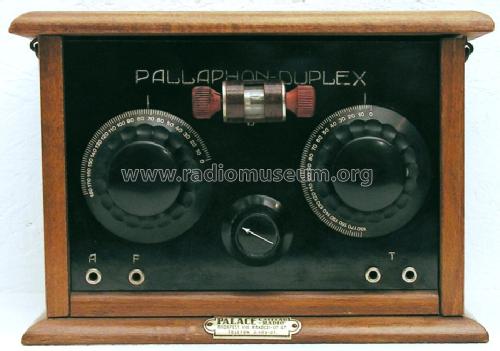

Pallaphon Duplex ; Palace Rádió, (ID = 987544) Crystal
Palace Rádió,: Pallaphon Duplex [Crystal] ID = 987544 933x656
Select picture or schematic to display from thumbnails on the right and click for download.
For model Pallaphon Duplex, Palace Rádió, Budapest:
Thanks for Mr.Sik Béla, Hungary! Thanks for technical assistance Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Hungary
Manufacturer / Brand:  Palace Rádió, Budapest
Year: 1935 Category: Detector-Radio (Crystal or diode, without tubes/transistors)
Main principle Crystal or Solid State Detector
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage No Power needed
Loudspeaker - only for Earphone!
Power out
from Radiomuseum.org Model: Pallaphon Duplex - Palace Rádió, Budapest
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 240 x 170 x 165 mm / 9.4 x 6.7 x 6.5 inch
Net weight (2.2 lb = 1 kg) 1.750 kg / 3 lb 13.7 oz (3.855 lb)
Price in first year of sale 30.00 Pengő

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.



All listed radios etc. from Palace Rádió, Budapest
Here you find 6 models, 5 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
