5225

5225; Pamphonic (ID = 806920) Radio

5225; Pamphonic (ID = 806921) Radio
Use red slider bar for more.

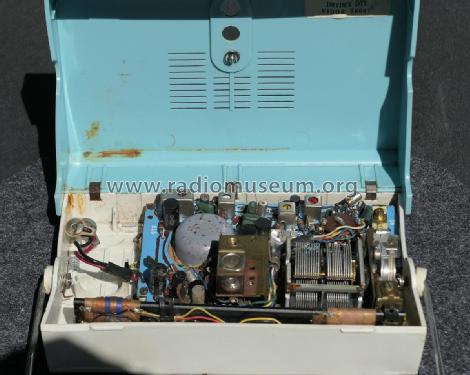

5225; Pamphonic (ID = 806920) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Pamphonic Reproducers Ltd.; London (Pam)
Year: 1966 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: 2SA73 2SA72 2SA72 NKT275 NKT278 NKT271 NKT773
Main principle Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 5225 - Pamphonic Reproducers Ltd.;
Notes Portable radio with "Luxembourg" bandspread.
Source of data -- Schematic
Literature/Schematics (1) Radio And Television Servicing books (R&TVS)

Model page created by Keith Staines. See "Data change" for further contributors.
