National Panasonic 2 Band 10 Transistor R-230J

National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1684426) Radio

National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1721051) Radio
National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1206460) Radio National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1206451) Radio
National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1206452) Radio National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1206453) Radio
National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1206456) Radio National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1206457) Radio
National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1206458) Radio National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1206459) Radio
National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 2061083) Radio National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 2061084) Radio
Use red slider bar for more.
National Panasonic 2 Band 10 Transistor R-230J; Panasonic, (ID = 1206460) Radio
Panasonic,: National Panasonic 2 Band 10 Transistor R-230J [Radio] ID = 1206460 933x585
Select picture or schematic to display from thumbnails on the right and click for download.
For model National Panasonic 2 Band 10 Transistor R-230J, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay User spanishbluebell57 Item 300685068014

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1966 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 10: 2SA70 2SA101 2SA101 2SA101 2SB171 2SB172 2SB173 2SB175 2SB176 2SB176 OA90
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / C: 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: National Panasonic 2 Band 10 Transistor R-230J - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 110 x 45 x 20 mm / 4.3 x 1.8 x 0.8 inch
Notes

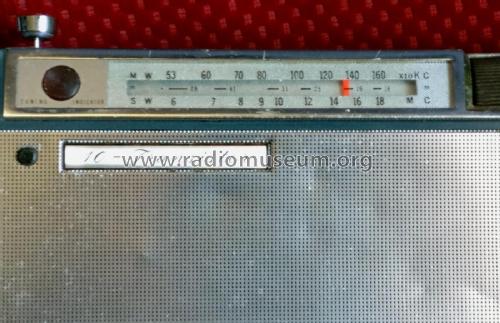

National Panasonic 2-Band 10-Transistor Portable Radio Model R-230J.
Tuning Range MW 525-1605 kHz, SW 5.9-18 MHz.

4"x 2.5", 8 ohm elliptical speaker , Two earphone/Ext. speaker jacks, Indicator lamp, Tone switch, Whip ANT., Ext. ANT.
Made in Japan by Matsushita Electric Industrial Co., Ltd.

Mentioned in -- Original prospect or advert (Magazine "Everybody's", Nov. 9, 1966, page 43.)
Literature/Schematics (1) -- Schematic

Model page created by Franz Scharner. See "Data change" for further contributors.
