• Year
  • 1971 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 185556

 Technical Specifications

  • Number of Transistors
  • 6
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Dry Batteries / D: 4 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
  • Power out
  • 0.7 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 2-Band All Transistor RL-231R - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 260 x 180 x 110 mm / 10.2 x 7.1 x 4.3 inch
  • Notes

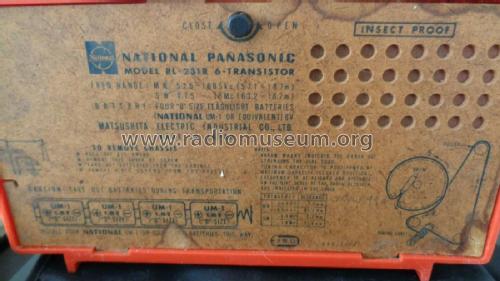

  • National Panasonic RL-231R, 2-Band 6-Transistor;
    Sky blue or red - see color code!
  • Net weight (2.2 lb = 1 kg)
  • 1.450 kg / 3 lb 3.1 oz (3.194 lb)
  • Mentioned in
  • -- Original prospect or advert ((Region?) National Panasonic "Radios & Transceivers" ±1971)
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
