2 Band - 8 Transistor R-211H

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1971/1972 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 304506

 Technical Specifications

  • Number of Transistors
  • 8
  • Main principle
  • Superheterodyne (common); ZF/IF 455 kHz
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Dry Batteries / AA: 4 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
  • Power out
  • 0.23 W (0.35 W max.)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: 2 Band - 8 Transistor R-211H - Panasonic, Matsushita,
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 164 x 90 x 43 mm / 6.5 x 3.5 x 1.7 inch
  • Notes

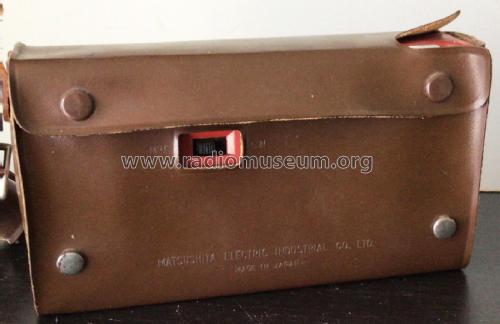

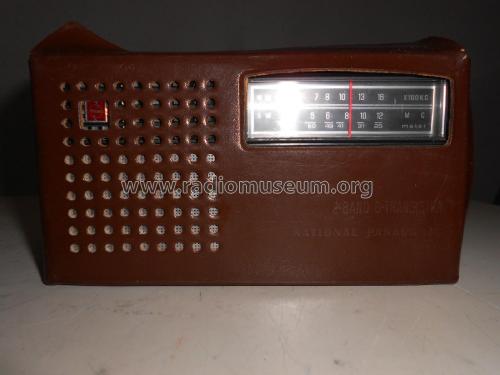

  • Controllo volume - commutatore MW-SW - antenna interna in ferrite - custodia in pelle - presa per cuffia - frequency range: MW 525-1605 KHz - SW 3.9-12 MHz.

    Volume control - MW-SW switch - internal ferrite antenna - leather case - headphone socket - frequency range: MW 525-1605 KHz - SW 3.9-12 MHz.

    Made in Japan.

    See also Model R-211J with different short-wave range.

  • Net weight (2.2 lb = 1 kg)
  • 0.390 kg / 0 lb 13.7 oz (0.859 lb)
  • Author
  • Model page created by Edoardo Sigismondo. See "Data change" for further contributors.
