3 Band 8 Transistor R-306

3 Band 8 Transistor R-306; Panasonic, (ID = 1614558) Radio 3 Band 8 Transistor R-306; Panasonic, (ID = 1614556) Radio
3 Band 8 Transistor R-306; Panasonic, (ID = 1614557) Radio 3 Band 8 Transistor R-306; Panasonic, (ID = 1614559) Radio
3 Band 8 Transistor R-306; Panasonic, (ID = 1614560) Radio 3 Band 8 Transistor R-306; Panasonic, (ID = 1614561) Radio
3 Band 8 Transistor R-306; Panasonic, (ID = 1614562) Radio 3 Band 8 Transistor R-306; Panasonic, (ID = 2091682) Radio
3 Band 8 Transistor R-306; Panasonic, (ID = 2091683) Radio 3 Band 8 Transistor R-306; Panasonic, (ID = 2091684) Radio
Use red slider bar for more.
3 Band 8 Transistor R-306; Panasonic, (ID = 1614558) Radio

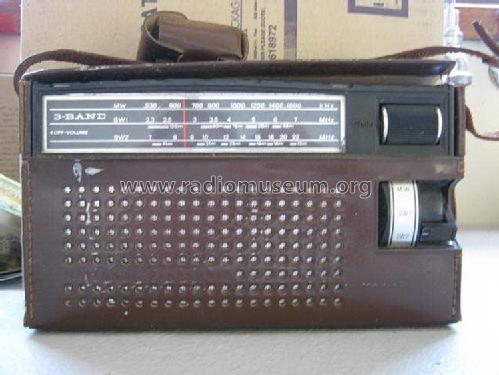

Panasonic,: 3 Band 8 Transistor R-306 [Radio] ID = 1614558 750x563
Select picture or schematic to display from thumbnails on the right and click for download.
For model 3 Band 8 Transistor R-306, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
eBay item number:221346626699

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1968 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8: 2SA341 2SA101 2SA101 2SB173 2SB175 2SB175 2SB175 2SB175
Main principle Superheterodyne (common)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage Dry Batteries / D: 3 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
Power out
from Radiomuseum.org Model: 3 Band 8 Transistor R-306 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 215 x 120 x 45 mm / 8.5 x 4.7 x 1.8 inch
Notes

Wavebands:
MW : 525 - 1605 kHz
SW1: 2.3 - 7 MHz
SW1: 7 - 22 MHz

PCB Number: RUP4210

Model page created by Daniel Rosha. See "Data change" for further contributors.
