• Year
  • 1985 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 253167

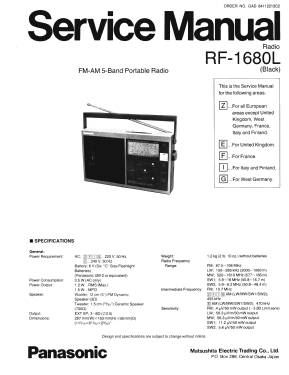

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 455/10700 kHz
  • Wave bands
  • Broadcast, (BC) Long Wave (LW), 2 x SW and FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 220 / C: 4 x 1,5 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Panasonic 5 Band Receiver GX80 RF-1680L - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 280 x 155 x 60 mm / 11 x 6.1 x 2.4 inch
  • Notes
  • Panasonic GX-80 RF-1680L with spreaded SW, SW1 6.0-18 MHz (16-49m), SW2 5.9-6.2 MHz (49m band), feather touch controls, slide band selector, soft push button for volume on/off, Led pointer for FM mute, loudness, tone, 2 way speaker, foldable handle.

  • Net weight (2.2 lb = 1 kg)
  • 1.2 kg / 2 lb 10.3 oz (2.643 lb)
  • Author
  • Model page created by Kent Johansson. See "Data change" for further contributors.
