7 Transistor

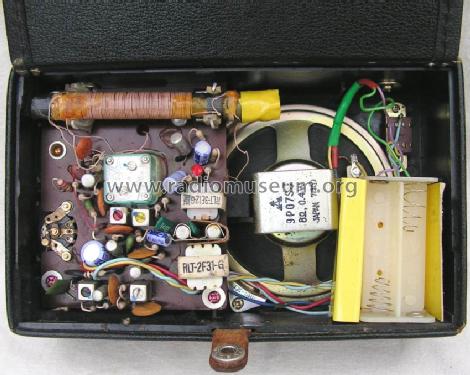

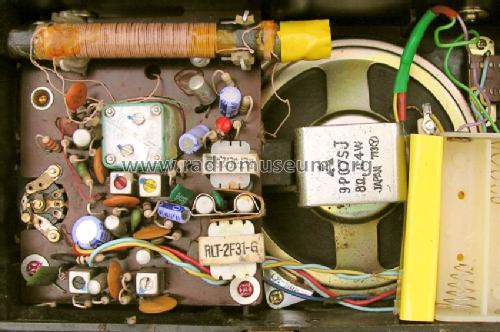

7 Transistor; Panasonic, (ID = 1034156) Radio 7 Transistor; Panasonic, (ID = 1034157) Radio
7 Transistor; Panasonic, (ID = 1034158) Radio 7 Transistor; Panasonic, (ID = 1034159) Radio
7 Transistor; Panasonic, (ID = 1034160) Radio
Use red slider bar for more.
7 Transistor; Panasonic, (ID = 1034156) Radio
Panasonic,: 7 Transistor [Radio] ID = 1034156 850x612
Select picture or schematic to display from thumbnails on the right and click for download.
For model 7 Transistor, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Thanks for Mr.Sik Béla, Hungary, Budapest and Első Zalai Rádiómúzeum Alapítvány. First Zala County Radio Museum Foundation.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1965 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7:
Main principle Superheterodyne (common)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 7 Transistor - Panasonic, Matsushita,
Material Leather / canvas / plastic - over other material
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 180 x 115 x 55 mm / 7.1 x 4.5 x 2.2 inch
Net weight (2.2 lb = 1 kg) 0.580 kg / 1 lb 4.4 oz (1.278 lb)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
