AC/Battery Portable Cassette Recorder RQ-2104

AC/Battery Portable Cassette Recorder RQ-2104; Panasonic, (ID = 2238942) R-Player AC/Battery Portable Cassette Recorder RQ-2104; Panasonic, (ID = 2238944) R-Player
AC/Battery Portable Cassette Recorder RQ-2104; Panasonic, (ID = 2238945) R-Player AC/Battery Portable Cassette Recorder RQ-2104; Panasonic, (ID = 2238946) R-Player
AC/Battery Portable Cassette Recorder RQ-2104; Panasonic, (ID = 2238947) R-Player AC/Battery Portable Cassette Recorder RQ-2104; Panasonic, (ID = 2238948) R-Player
AC/Battery Portable Cassette Recorder RQ-2104; Panasonic, (ID = 2238949) R-Player
Use red slider bar for more.
AC/Battery Portable Cassette Recorder RQ-2104; Panasonic, (ID = 2238942) R-Player
Panasonic,: AC/Battery Portable Cassette Recorder RQ-2104 [R-Player] ID = 2238942 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model AC/Battery Portable Cassette Recorder RQ-2104, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:

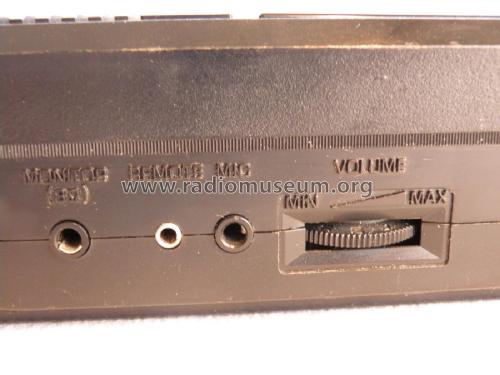

J_Panasonic_RQ-2104_vue de côté gauche_coll. William FAGUE

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1990 ?? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / AC 60 Hz: 120 or AC 50 Hz: 220 / C: 4 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 0.65 W (max.)
from Radiomuseum.org Model: AC/Battery Portable Cassette Recorder RQ-2104 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 5.5 x 2.06 x 9.81 inch / 140 x 52 x 249 mm
Notes

Panasonic RQ-2104 Slim Line is an AC or battery operated cassette tape player/recorder with Auto-Stop function.

Power requirements:
USA and Canada versions: 60 Hz, 120 VAC
Europe versions: 50 Hz, 220 VAC

Made in Singapore.

Net weight (2.2 lb = 1 kg) 0.871 kg / 1 lb 14.7 oz (1.919 lb)
Mentioned in -- Original-techn. papers.

Model page created by Franz Scharner. See "Data change" for further contributors.
