All Transistor R-1082

All Transistor R-1082; Panasonic, (ID = 1438641) Radio All Transistor R-1082; Panasonic, (ID = 1438642) Radio
All Transistor R-1082; Panasonic, (ID = 1438643) Radio All Transistor R-1082; Panasonic, (ID = 1438644) Radio
All Transistor R-1082; Panasonic, (ID = 1438646) Radio All Transistor R-1082; Panasonic, (ID = 1438648) Radio
Use red slider bar for more.
All Transistor R-1082; Panasonic, (ID = 1438641) Radio
Panasonic,: All Transistor R-1082 [Radio] ID = 1438641 933x901
Select picture or schematic to display from thumbnails on the right and click for download.
For model All Transistor R-1082, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
By courtesy of EBAY Seller: metoe83 - EBAY Shop: TriCornerEstates

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA102 2SA101 2SA101 2SB175 2SB176 2SB176
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.25 inch = 5.7 cm
Power out 0.15 W (max.)
from Radiomuseum.org Model: All Transistor R-1082 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 2.625 x 4.25 x 1.5 inch / 67 x 108 x 38 mm
Notes

Panasonic Pocket AM-Radio Model All Transistor R-1082.
Frequency Range: 525 - 1605 kHz.

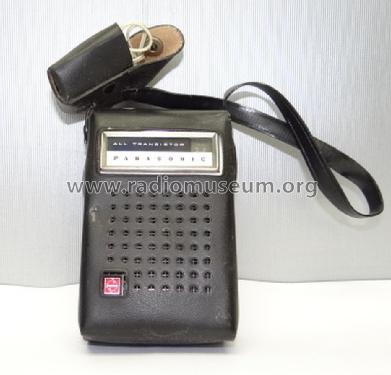

Leather carrying case, headphones.
Features a black cabinet, chrome face plate, a small dial window, tuning dials on the sides and earplug jack on the top.
Made in Japan.

Model page created by Franz Scharner. See "Data change" for further contributors.
