AM/FM/PSB 3-Band RF-1080

AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 1418514) Radio AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 1418515) Radio
AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 1418516) Radio AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 1418517) Radio
AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 1418519) Radio AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 1418521) Radio
AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 1418523) Radio AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 1840079) Radio
AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 2030451) Radio AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 2030454) Radio
Use red slider bar for more.
AM/FM/PSB 3-Band RF-1080; Panasonic, (ID = 1418514) Radio
Panasonic,: AM/FM/PSB 3-Band RF-1080 [Radio] ID = 1418514 933x655
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM/PSB 3-Band RF-1080, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
By Courtesy of Ebay Seller wholesalecoolstuff

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details

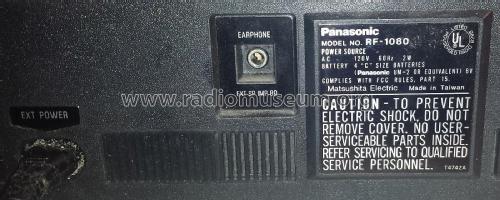

Power type and voltage Line / Batteries (any type) / 120; 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AM/FM/PSB 3-Band RF-1080 - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Notes Panasonic RF-1080, AM/FM/PSB 3-Band, AC-Battery 2 Way System;
PSB: 148 - 174 MHz, dial light, tuning/batt. meter, AFC, squelch & tone control, earphone jack, 2 W mains power consumption.
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.
