AU-306 J

AU-306 J; Panasonic, (ID = 2257565) Radio
Use red slider bar for more.
AU-306 J; Panasonic, (ID = 2257565) Radio

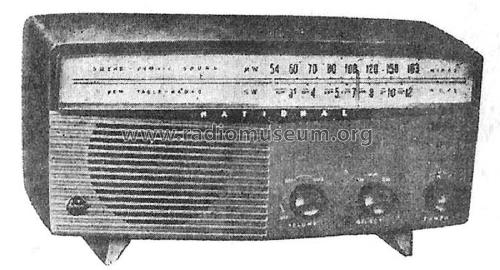

Panasonic,: AU-306 J [Radio] ID = 2257565 1400x756
Select picture or schematic to display from thumbnails on the right and click for download.
For model AU-306 J, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
From J.R. handbook.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1962 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110-220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AU-306 J - Panasonic, Matsushita,
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Notes

Mains powered dual-wave table radio.

Literature/Schematics (1) J.R. Publications Radio Service Handbook (R.V. Series Vol. 1, 1963, Page N1.)

Model page created by Martin Kent. See "Data change" for further contributors.
