Big Speaker RF-562D

Big Speaker RF-562D; Panasonic, (ID = 1422216) Radio Big Speaker RF-562D; Panasonic, (ID = 1422223) Radio
Big Speaker RF-562D; Panasonic, (ID = 1422217) Radio Big Speaker RF-562D; Panasonic, (ID = 1422218) Radio
Big Speaker RF-562D; Panasonic, (ID = 1422219) Radio Big Speaker RF-562D; Panasonic, (ID = 1422220) Radio
Big Speaker RF-562D; Panasonic, (ID = 1422221) Radio Big Speaker RF-562D; Panasonic, (ID = 1422222) Radio
Big Speaker RF-562D; Panasonic, (ID = 1422225) Radio Big Speaker RF-562D; Panasonic, (ID = 1422230) Radio
Use red slider bar for more.
Big Speaker RF-562D; Panasonic, (ID = 1422216) Radio
Panasonic,: Big Speaker RF-562D [Radio] ID = 1422216 930x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Big Speaker RF-562D, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 2010 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Short Wave plus FM or UHF.
Details

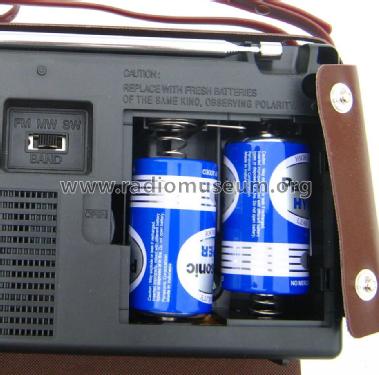

Power type and voltage Dry Batteries / 2 x 1,5 UM-1 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out
from Radiomuseum.org Model: Big Speaker RF-562D - Panasonic, Matsushita,
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 210 x 120 x 65 mm / 8.3 x 4.7 x 2.6 inch
Notes

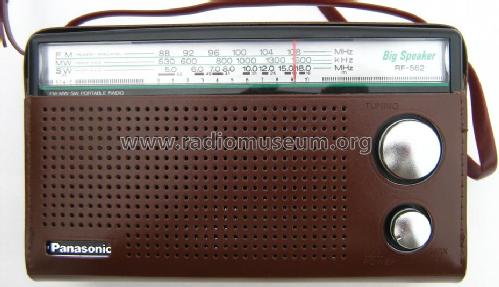

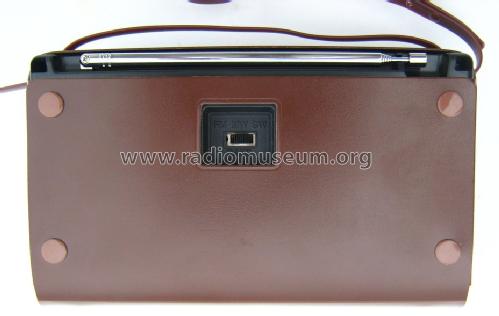

Retro-Radio with faux leather carrying case. Telescopic antenna. Battery operation only.

FM:   88 -108 MHz
MW:  530 -1605 kHz
SW:  4.75 -18 MHz

Made in Indonesia.

Net weight (2.2 lb = 1 kg) 0.650 kg / 1 lb 6.9 oz (1.432 lb)

Model page created by Daniel Rosha. See "Data change" for further contributors.
