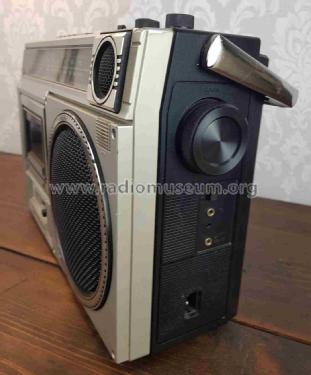

FM/AM Radio Cassette Recorder RX-1540

FM/AM Radio Cassette Recorder RX-1540; Panasonic, (ID = 1425044) Radio FM/AM Radio Cassette Recorder RX-1540; Panasonic, (ID = 1425043) Radio
FM/AM Radio Cassette Recorder RX-1540; Panasonic, (ID = 1425047) Radio FM/AM Radio Cassette Recorder RX-1540; Panasonic, (ID = 1840076) Radio
Use red slider bar for more.
FM/AM Radio Cassette Recorder RX-1540; Panasonic, (ID = 1425044) Radio
Panasonic,: FM/AM Radio Cassette Recorder RX-1540 [Radio] ID = 1425044 930x610
Select picture or schematic to display from thumbnails on the right and click for download.
For model FM/AM Radio Cassette Recorder RX-1540, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
Ebay Item number:321093910089

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1984 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Line / Batteries (any type) / 60Hz 120 / 5 x 1,5 Volt
Loudspeaker 2 Loudspeakers
Power out 2 W (undistorted)
from Radiomuseum.org Model: FM/AM Radio Cassette Recorder RX-1540 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 341 x 230 x 136 mm / 13.4 x 9.1 x 5.4 inch
Notes

Panasonic RX-1540 FM/AM Radio Cassette Recorder built in MIC record.

Net weight (2.2 lb = 1 kg) 2.1 kg / 4 lb 10 oz (4.626 lb)
Mentioned in - - Manufacturers Literature (Service Manual)

Model page created by Daniel Rosha. See "Data change" for further contributors.
