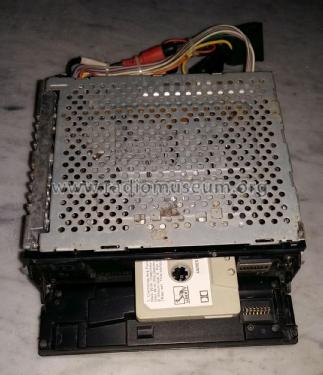

Cassette Player RDS Receiver CQ-FX35LEN; Panasonic, (ID = 2481287) Car Radio Cassette Player RDS Receiver CQ-FX35LEN; Panasonic, (ID = 2481289) Car Radio
Use red slider bar for more.
Cassette Player RDS Receiver CQ-FX35LEN; Panasonic, (ID = 2481282) Car Radio
Panasonic,: Cassette Player RDS Receiver CQ-FX35LEN [Car Radio] ID = 2481282 1400x734
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Player RDS Receiver CQ-FX35LEN, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1990 ?? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 23: TEA6320 TDA7331 M5218 µPD78058 MC1458 BA3835 µPC4570
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 160 W (max.)
from Radiomuseum.org Model: Cassette Player RDS Receiver CQ-FX35LEN - Panasonic, Matsushita,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 50 x 150 mm / 7 x 2 x 5.9 inch
Notes

Car radio with FM stereo and stereo cassette player.  To insert the tape, the front panel, also removable, must be turned outwards. Super bright large display with level meters.            RDS (Radio Data System). 18 preset stations in FM and 6 in AM. CD changer control.    Dolby B NR circuit.

Electronic controls: Volume, Bass, Treble, Fader, Balance.

23 Transistors, 30 Diodes, 13 ICs and 3 Crystals.

Made in Thailand.

Net weight (2.2 lb = 1 kg) 1.6 kg / 3 lb 8.4 oz (3.524 lb)
Mentioned in -- Original-techn. papers. (Original service manual.)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
