Cassette Player/Recorder with Changer Control CQ-FX220N

Cassette Player/Recorder with Changer Control CQ-FX220N; Panasonic, (ID = 2619524) Car Radio Cassette Player/Recorder with Changer Control CQ-FX220N; Panasonic, (ID = 2619528) Car Radio
Cassette Player/Recorder with Changer Control CQ-FX220N; Panasonic, (ID = 2619527) Car Radio Cassette Player/Recorder with Changer Control CQ-FX220N; Panasonic, (ID = 2619530) Car Radio
Cassette Player/Recorder with Changer Control CQ-FX220N; Panasonic, (ID = 2619525) Car Radio Cassette Player/Recorder with Changer Control CQ-FX220N; Panasonic, (ID = 2619526) Car Radio
Cassette Player/Recorder with Changer Control CQ-FX220N; Panasonic, (ID = 2619529) Car Radio
Use red slider bar for more.
Cassette Player/Recorder with Changer Control CQ-FX220N; Panasonic, (ID = 2619524) Car Radio

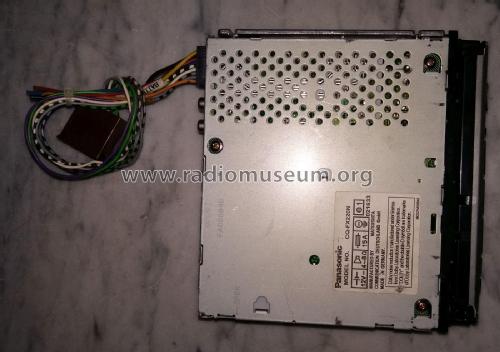

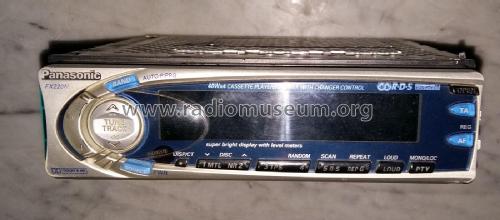

Panasonic,: Cassette Player/Recorder with Changer Control CQ-FX220N [Car Radio] ID = 2619524 1400x616
Select picture or schematic to display from thumbnails on the right and click for download.
For model Cassette Player/Recorder with Changer Control CQ-FX220N, Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 2000 ? Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 22: DTC323 DTA114 2SD1859 2SB1243 TDA7384 MC1458
Main principle PLL, Phase-locked loop
Wave bands Broadcast, Long Wave and FM or UHF.
Details Cassette-Recorder or -Player; Radio Control (+Remote Wire etc)
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 160 W (max.)
from Radiomuseum.org Model: Cassette Player/Recorder with Changer Control CQ-FX220N - Panasonic, Matsushita,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 178 x 50 x 170 mm / 7 x 2 x 6.7 inch
Notes

FM stereo car radio with LW and MW. RDS on FM. Stereo cassette player.
Optional Remote Control.
Frequency response (cassette) 30 Hz to 17,000 Hz (normal), 30 Hz to 18,000 Hz (metal).
Bass control at 100 Hz: ± 12 dB. Treble control at 10 kHz: ± 12 dB. Dolby B on/off.
Maximum power output 4 x 40 W at 4 Ω.
Power output (DIN45 324) 4 x 20 W at 4 Ω.
Speaker impedance: 4 - 8 Ω.
CD input with changer control.
22 Transistors, 15 ICs and 19 Diodes, listed one per type and not all.

Made in Germany

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Literature/Schematics (1) - - Manufacturers Literature (Service manual CQ-FX220N dated 2000)

Model page created by Pier Antonio Aluffi. See "Data change" for further contributors.
