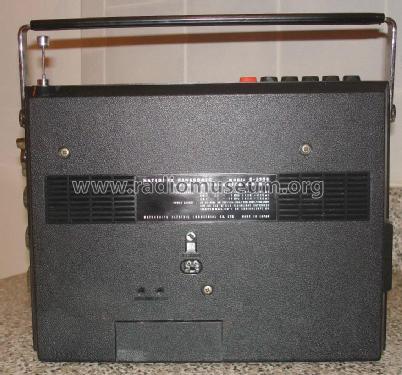

Cassette / Radio AC-Battery Solid State R-530B
Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Country
- Japan
- Manufacturer / Brand
- Panasonic, Matsushita, National ナショナル (also tubes); Osaka
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 258751
- Number of Transistors
- 13
- Semiconductors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line plus power jack, mostly with battery or storage battery / 90-110; 110-125; 200-220; 220-240; D: 6 x 1,5; 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Cassette / Radio AC-Battery Solid State R-530B - Panasonic, Matsushita,
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 8.5 x 11 x 2.5 inch / 216 x 279 x 64 mm
- Notes
-
National Panasonic 3-Band 13-Transistor 4-Diode Portable Radio Cassette Model R-530B.
Tuning Range: AM 525 - 1605 kHz, SW1 2.3 - 7 MHz, SW2 7 - 22 MHz.
Power Consumption 10 Watts.
Telesopic antenna, Carrying Handle.
- Net weight (2.2 lb = 1 kg)
- 8.2 lb (8 lb 3.2 oz) / 3.723 kg
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
