• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 2017 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 306878

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• DAB and FM, perhaps with Streaming [DABFM]

• Details
• CD-Player, -Writer, MD, MOD (audio); Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 220-240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 120 W (max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: CD-Stereoanlage SA-PMX84 - Panasonic, Matsushita,

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 211 x 114 x 267 mm / 8.3 x 4.5 x 10.5 inch

• Notes

• Anschlüsse:  USB, Kopfhörer, Analoger Audio-Eingang
  Dateiformate:  AIFF, DSD, MP3, AAC, FLAC, WAV
  Features:  UKW, DAB+, Bluetooth
  Komponenten:  Separate Lautsprecher, CD-Receiver, Fernbedienung
  30 UKW-Sender-Speicher
  20 DAB+ Sender-Speicher

• Net weight (2.2 lb = 1 kg)
• 2.8 kg / 6 lb 2.7 oz (6.167 lb)

• Price in first year of sale
• 233.00 €

• Mentioned in

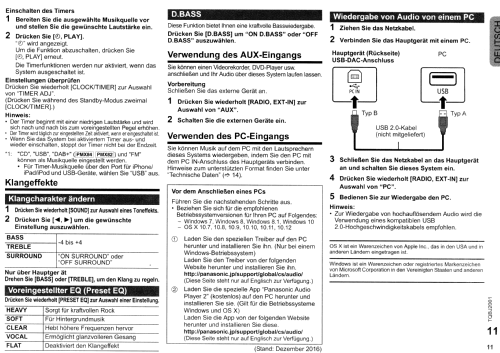

• - - Manufacturers Literature

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
