Clock Radio Cassette Player RC-X160

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data

Forum

Pictures

Collections

Country
Japan

Manufacturer / Brand
Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Year
1994 ??

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
174181

Schematics

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852221) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852222) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852223) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852224) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852225) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852226) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852227) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852228) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852229) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852230) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852231) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2852232) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (3)

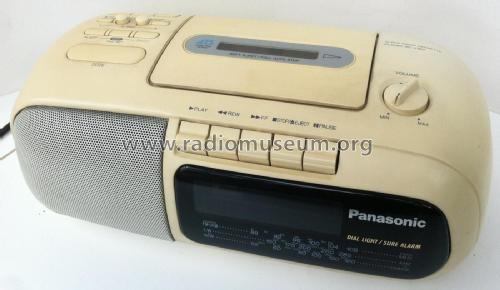

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2850379) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2851390) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2851386) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2851384) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2851392) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2851393) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2851394) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2851395) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 819932) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (2)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 819931) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (2)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 819933) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (2)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 765257) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 819930) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (2)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 765253) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 765255) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Clock Radio Cassette Player RC-X160; Panasonic, (ID = 2326979) Radio — Panasonic, Clock Radio Cassette Player RC-X160 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
10

Semiconductors
2SC1684 2SC1684 2SC1684 2SC1684 2SC1684 2SC1684 2SC1684 2SC2001 2SC2001 2SA952 TA8164 TA7368 LM8562 SL2042-30T

Main principle
Superheterodyne (common)

Wave bands
Broadcast, Long Wave and FM or UHF.

Details
Cassette-Recorder or -Player

Power type and voltage
Line / Batteries (any type) / 50 Hz, 230 & backup for clock 1 x 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Clock Radio Cassette Player RC-X160 - Panasonic, Matsushita,

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Dimensions (WHD)
303 x 113 x 152 mm / 11.9 x 4.4 x 6 inch

Notes
Panasonic RC-X160 est un réveil avec radio cassette.

Made in Singapore

Net weight (2.2 lb = 1 kg)
1.6 kg / 3 lb 8.4 oz (3.524 lb)

Author
Model page created by Jacky Parmentier. See "Data change" for further contributors.
