Compact Stereo Radio Cassette Recorder RX-2700

• Country
• Japan

• Manufacturer / Brand
• Panasonic, Matsushita, National ナショナル (also tubes); Osaka

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 188109

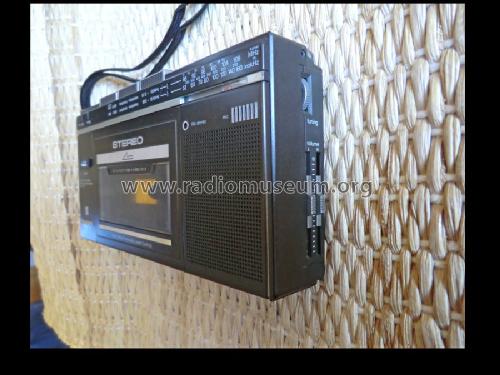

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Batteries / addl. power jack / 4 × 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch

• Power out
• 0.55 W (max.)

• Material
• Various materials

• from Radiomuseum.org
• Model: Compact Stereo Radio Cassette Recorder RX-2700 - Panasonic, Matsushita,

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 190 x 96 x 36 mm / 7.5 x 3.8 x 1.4 inch

• Notes
• Stereo, AC adaptor RD-9446.

• Net weight (2.2 lb = 1 kg)
• 0.620 kg / 1 lb 5.9 oz (1.366 lb)

• Source of data
• -- Original prospect or advert
