Compact Stereo SG-1090L

Compact Stereo SG-1090L; Panasonic, (ID = 1761921) Radio
Use red slider bar for more.
Compact Stereo SG-1090L; Panasonic, (ID = 1761921) Radio
Panasonic,: Compact Stereo SG-1090L [Radio] ID = 1761921 933x1276
Select picture or schematic to display from thumbnails on the right and click for download.
For model Compact Stereo SG-1090L, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:

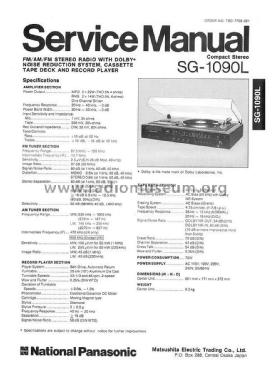

Service Manual

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1980 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Record Player + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 44 W (max.)
from Radiomuseum.org Model: Compact Stereo SG-1090L - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 601 x 171 x 372 mm / 23.7 x 6.7 x 14.6 inch
Notes

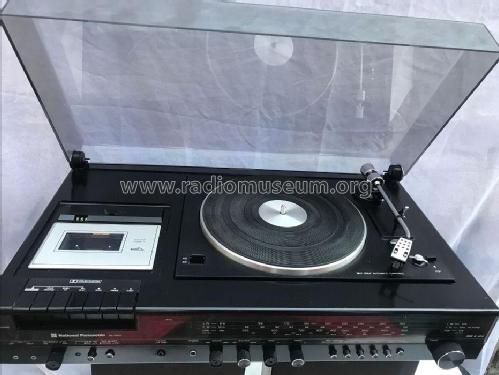

Panasonic Compact Stereo Model SG-1090L.
LW/AM/FM Stereo Radio with Dolby NR, Cassette Tape Deck and Record Player.
2x 22 Watts MPO, 4 ohms, THD 5%
2x 14 Watts RMS, 4 ohms, THD 5%
Bass- & Treble-Control
Tuning Range: FM 87,5 - 108 MHz, AM 525 - 1605 kHz, LW 145 - 350 kHz
2-Speed (33&45 rpm) belt driven Turntable, Automatic Return
Moving Magnet Type, 250mm Platter Aluminum Die Cast
Tape Deck with DOLBY NR, 20-16000Hz
Power Consumption 78 Watts
IF UK only: 470kHz
Dust Cover



Net weight (2.2 lb = 1 kg) 9.3 kg / 20 lb 7.8 oz (20.485 lb)
Mentioned in -- Original-techn. papers. (Service Manual - Order No.: TSD-7708-281)

Model page created by Franz Scharner. See "Data change" for further contributors.
