Compact Stereo SG-2080S

Compact Stereo SG-2080S; Panasonic, (ID = 1987200) Radio

Compact Stereo SG-2080S; Panasonic, (ID = 1987204) Radio

Compact Stereo SG-2080S; Panasonic, (ID = 1987206) Radio
Use red slider bar for more.

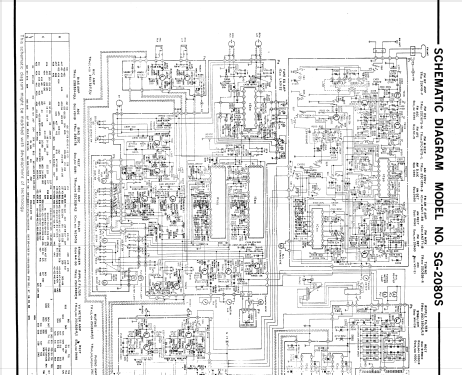

Compact Stereo SG-2080S; Panasonic, (ID = 1987200) Radio
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1976 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast, Short Wave plus FM or UHF.
Details Record Player + Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-115; 115-130; 200-225; 225-250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 34 W (44 W max.)
from Radiomuseum.org Model: Compact Stereo SG-2080S - Panasonic, Matsushita,
Material Wooden case
Shape Console with Push Buttons.
Dimensions (WHD) 460 x 237 x 290 mm / 18.1 x 9.3 x 11.4 inch
Notes

Posee sistema de 4 canales matriz lo cual ofrece sonido por 4 canales, originado por fuentes sonoras de 2 canales. Basta añadir 2 altavoces traseros opcionales.



Net weight (2.2 lb = 1 kg) 14.650 kg / 32 lb 4.3 oz (32.269 lb)
Mentioned in - - Manufacturers Literature

Model page created by Carlos A. Pieroni-García. See "Data change" for further contributors.
