CR-1453A

CR-1453A; Panasonic, (ID = 2253956) Car Radio CR-1453A; Panasonic, (ID = 2253957) Car Radio
Use red slider bar for more.

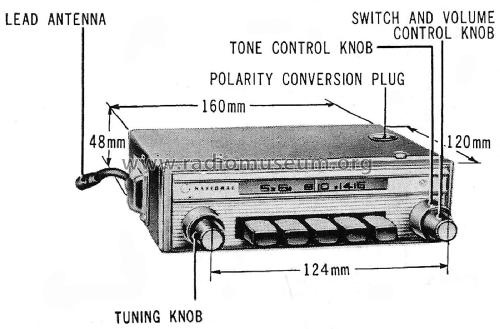

CR-1453A; Panasonic, (ID = 2253956) Car Radio
Panasonic,: CR-1453A [Car Radio] ID = 2253956 1400x922
Select picture or schematic to display from thumbnails on the right and click for download.
For model CR-1453A, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
From service manual

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1965/1965 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 8: 2SA102 2SA102 2SA102 2SA102 2SB175 2SB345 2SB324 2SB324 OA70
Main principle Superhet with RF-stage; ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 11-16 Volt
Loudspeaker - This model requires external speaker(s). / Ø 12 cm = 4.7 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: CR-1453A - Panasonic, Matsushita,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 160 x 48 x 120 mm / 6.3 x 1.9 x 4.7 inch
Notes

National Model CR-1453A

Push-button car radio with external speaker (EAS-12P24SA) to match car type. Eight transistors, one diode. Output 2W. Inbuilt anti-interference circuit. "Micro-Module" principle giving nine transistor performance. (MINGAY'S PRICE SERVICE)

Speaker dimensions: 181mm x 150mm x 80mm.

Price in Australia after the introduction of decimal currency (14/2/1966), $94.50.

Price in first year of sale 47.25 AUS £
Mentioned in Mingay's Price Service (Aug 1965 to Aug 1969.)

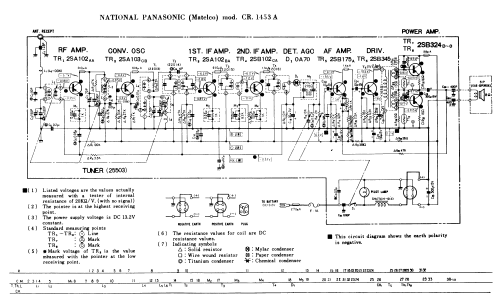

Literature/Schematics (1) - - Manufacturers Literature (National Car Radio Service Note.)
Literature/Schematics (2) J.R. Publications Car Radio Service Handbook (Group G5 Febraury 1968, Page N3.)

Model page created by Martin Kent. See "Data change" for further contributors.
