CT-5513 Ch= NMX-X7

CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117810) Television CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117811) Television
CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117812) Television CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117814) Television
CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117815) Television CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117816) Television
CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117818) Television CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117819) Television
CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117820) Television CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117821) Television
Use red slider bar for more.
CT-5513 Ch= NMX-X7; Panasonic, (ID = 2117810) Television
Panasonic,: CT-5513 Ch= NMX-X7 [Television] ID = 2117810 1200x1042
Select picture or schematic to display from thumbnails on the right and click for download.
For model CT-5513 Ch= NMX-X7, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:

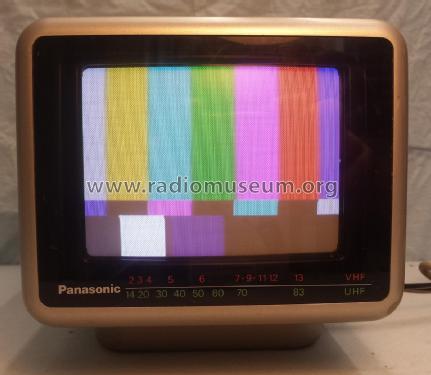

Farbtestbild

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1983 ?? Category: Television Receiver (TV) or Monitor
Valves / Tubes 1:
Main principle Superheterodyne (common); ZF/IF 38,9 kHz
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Batteries (any type) / 120 / 12 Volt
Loudspeaker
Power out
from Radiomuseum.org Model: CT-5513 Ch= NMX-X7 - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Dimensions (WHD) 175 x 180 x 310 mm / 6.9 x 7.1 x 12.2 inch
Notes

Color Fernsehempfänger zum Empfang von NTSC Signalen

6 Zoll Bildröhre mit Schlitzmaske

Fest angeschlossene Kabel Fernbedienung

Spannungsversorgung 120V AC oder Extern 12V DC  15Watt

Net weight (2.2 lb = 1 kg) 4.7 kg / 10 lb 5.6 oz (10.352 lb)

Model page created by Axel Paap. See "Data change" for further contributors.
