Deluxe MW-SW 2-Band 8-Transistor R-214R

Deluxe MW-SW 2-Band 8-Transistor R-214R; Panasonic, (ID = 2496803) Radio Deluxe MW-SW 2-Band 8-Transistor R-214R; Panasonic, (ID = 2496804) Radio
Deluxe MW-SW 2-Band 8-Transistor R-214R; Panasonic, (ID = 2496805) Radio
Use red slider bar for more.

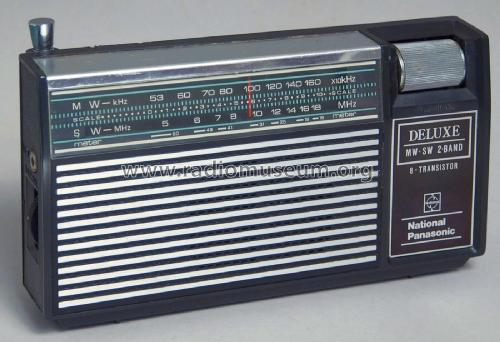

Deluxe MW-SW 2-Band 8-Transistor R-214R; Panasonic, (ID = 2496803) Radio
Panasonic,: Deluxe MW-SW 2-Band 8-Transistor R-214R [Radio] ID = 2496803 1400x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model Deluxe MW-SW 2-Band 8-Transistor R-214R, Panasonic, Matsushita, National ナショナル (also tubes); Osaka:
ebay.com_313024497092 seller mreuromarcus

Country:  Japan
Manufacturer / Brand:  Panasonic, Matsushita, National ナショナル (also tubes); Osaka
Year: 1974/1975 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 8:
Main principle Superheterodyne (common)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / D: 2 x 1.5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: Deluxe MW-SW 2-Band 8-Transistor R-214R - Panasonic, Matsushita,
Material Plastics (no bakelite or catalin)
Notes

National Model R214R

Powerful 8-transistor 2-band portable with automatic gain control. Roller type tuning. Powered by 2 x UM1 batteries. Complete with carrying strap. (MINGAY'S PRICE SERVICE)

Price in first year of sale 33.95 AUS $
Mentioned in Mingay's Price Service (Feb 1975 & Aug 1975.)

Model page created by Aldo Andreani. See "Data change" for further contributors.
