Double Superheterodyne DR 26 RF-2600LBE

Panasonic, Matsushita, National ナショナル (also tubes); Osaka

Data
Forum
Pictures
Collections

  • Year
  • 1978 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 362993

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion
  • Wave bands
  • Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
  • Power type and voltage

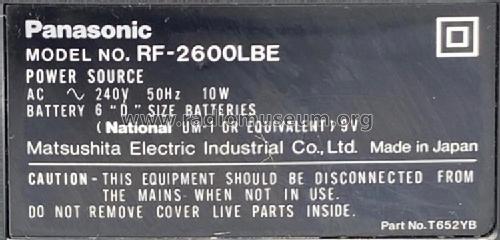

  • Line / Batteries (any type) / 50 Hz, 240 / D: 6 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Double Superheterodyne DR 26 RF-2600LBE - Panasonic, Matsushita,
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • Panasonic DR-26 (United Kingdom version): double conversion superhet.
    Two IF bandwidths, two mechanical tuning speeds, digital frequency readout by counter.

    See also:
    RF-2600 (60 Hz, 120 V, United States)
    RF-2600B (50-60 Hz, 110-125; 220-240 V, General Export)
    RF-2600BA (50 Hz, 240 V, Australia)
    RF-2600LBS (50-60 Hz, 110-125; 220-240 V, with long wave, Europe)

  • Author
  • Model page created by Martin Kent. See "Data change" for further contributors.
